Cordless Small Centrifuges



   Specification:

   - Overall dimension 36 x 45 x 29.5cm.
   - Net weight 20.4 kg (44.88 Lbs).
   - Speed range Max 5000 rpm adjustable, digital display.
   - Max RCF 4124xg at 5000rpm or 2640xg at 4000rpm.
   - Motor Brush-less, 300W.
   - Timer Digital, 99 min, 2-digits.
   - Errors detection 6 causes (E-1 ¢ E-6), alarm & shutout.
   - Brake Automatic, less than 1 min.
   - Indicators Spin, Alarm, Lid Lock, SV, RPM, RCF.
   - Max capacity 240 ml.
   - Overheat, overload Alarm & shutout.

   Technical Data:

   - Sophisticated module electronic circuit for easy maintenance.
   - Stainless steel chamber easy for cleaning ensuring to be free from contamination.
   - Automatic imbalance detection system prevents damage by gently bringing rotor to a stop.
   - Automatic braking system brakes to complete stop gently within 1 min when the set time is elapsed.
   - "LID LOCK" lamp illuminates when the lid is locked properly.
   - Convert RPM and RCF readings automatically from one to the other, convenient for choice to meet your application.
   - Electric interlocking system prevents the lid open during operation. Press button of LID OPEN before opening the lid.
   - Lid can't be opened in case of the failure of the mains power. Lid-open override system is designed to open the lid manually.
   - Button STOP functions to stop spinning against the emergency.
   - Features Errors detection: Rotor Imbalance、Disengaged Connector、Overload、Driver overheat、Motor overheat.
   - Brush-less induction drive creates quiet operation.

---

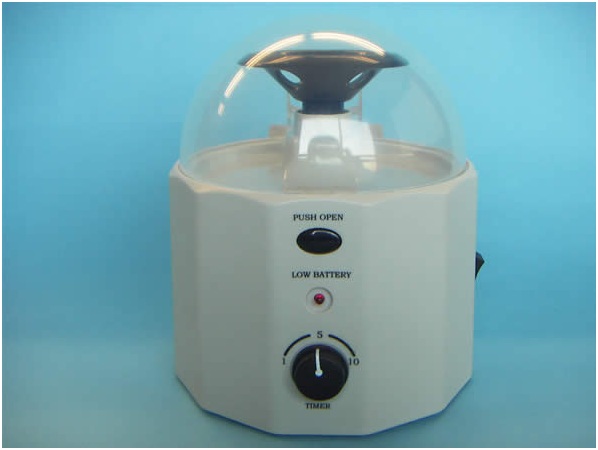

    AcNo Light



Power source	Four D-size alkaline batteries (6V)
Rotation speed	7,000 rotations (at no load)
Battery-depletion warning light	Illuminates at 3,500 rotations or less
Safety system function	Automatically stops when the lid is opened during rotation
Timer	Variable within 10 minutes
Basic machine weight	343g (879g, including batteries installed)
Outside dimensions	137mm(diameter) x 142mm(height)
Used centrifuge tubes	Less than 11mm in outer diameter Less than 40 mm in full length
Continuous use frequency (rough standard)	120 times with the 10min. timer
Option	Centrifuge rotor according to size Centrifuge tube adapter according to size

---

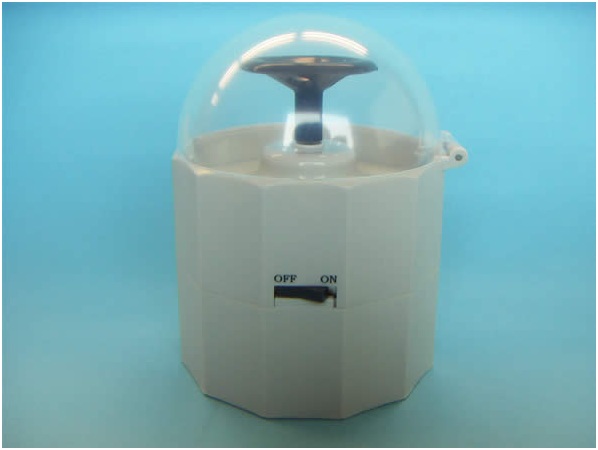

    AcNo Mini



Power source	Two AA-size alkaline batteries (3V)
Rotation speed	11,000 rotations (at no load)
Battery-depletion warning light	-
Safety system function	Automatically stops when the lid is opened during rotation
Timer	Fixed within 3.5 minutes
Basic machine weight	125g (167g, including batteries installed)
Outside dimensions	85mm(diameter) x 102mm(height)
Used centrifuge tubes	Less than 6.0mm / 7.8mm in outer diameter Less than 35 mm in full length
Continuous use frequency (rough standard)	90 times with the 3.5min. timer
Option	Centrifuge rotor according to size

---

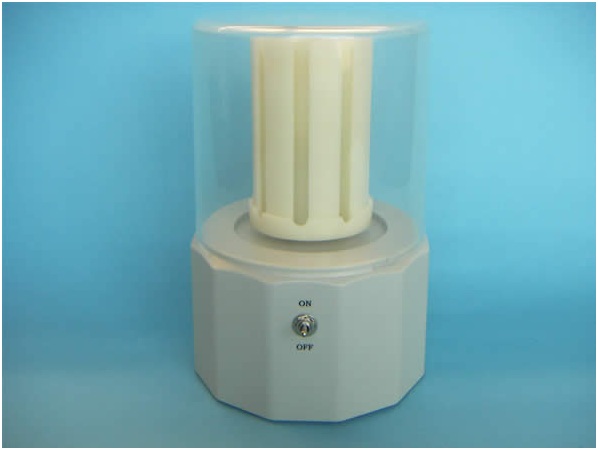

    AcNo Collect



Power source	Two AA-size alkaline batteries (3V)
Rotation speed	5,000 rotations (at no load)
Battery-depletion warning light	-
Safety system function	-
Timer	-
Basic machine weight	340g (885g, including batteries installed)
Outside dimensions	115mm(diameter) x 165mm(height)
Used centrifuge tubes	Less than 6mm in outer diameter Less than 24mm in full length
Continuous use frequency (rough standard)	200 times exclusively for spinning down
Option	-
